Specification

• Digital display & Led battery Level indicator
• 96% efficiency in 12-V systems and 97% efficiency in 24-v systems
• Wide input voltage range: 15 V to 100 V
• High rated output current: 70A
• Over-charge and surge protections

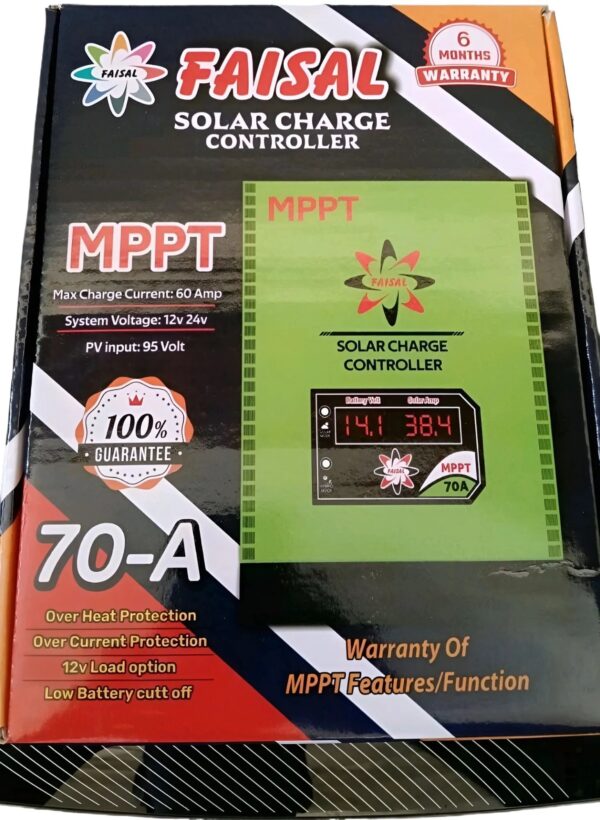

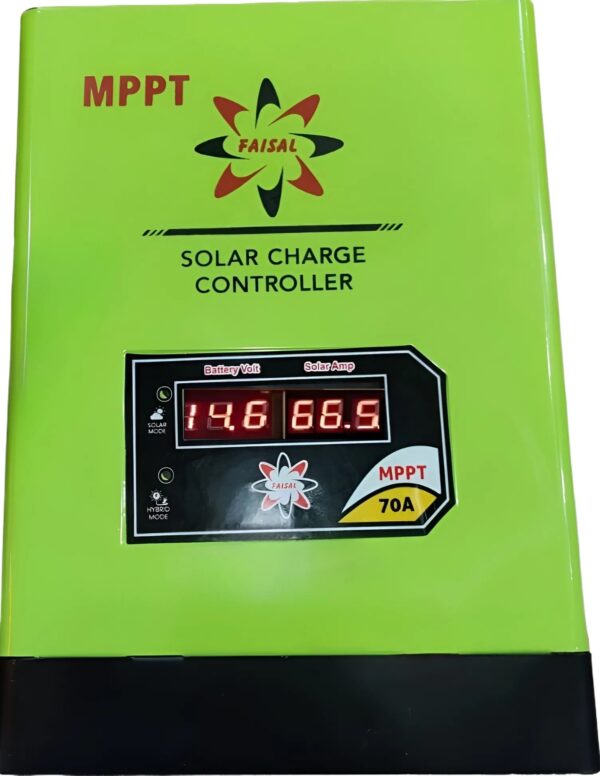

• Faisal MPPT Solar Charge Controller 70A
• Smart Digital DC 12V/24V System
• Over-temperature and ambient light detection capabilities
• The Faisal MPPT Solar Charge Controller (Normal-Model) 70A is highly efficient for charging solar power needs.
• Supports 12/24V systems up to 1200/2400W and compatible with 1200W/12V and 2400W/24V solar panels.
• Non-Hybrid Normal Model ensures optimal efficiency with maximum power point tracking.
• Easy installation and user-friendly interface for convenient use.
• Reliable and durable design for long-lasting and efficient charging of off-grid solar systems.

Faisal MPPT normal model 65 ampere

POWER

65 Amp

Solar System Voltage

12V/24V

PV Operation

Voltage 15-90 Vdc@12V

Voltage 34-90 Vdc @ 24V

Max. PV open circuit voltage

90V DC Max. PV input power 12V 1200W / 24V 2400W

Max. charging current

70A Conversion Efficiency 98%

PROTECTION

High voltage, high temperature protection

BATTERY

Battery Type (*Lead Acid*, Tubular, AGM)

CHARGING ALGORITHUM

3-stage: Bulk, Float, Trickle Equalize

CHARGE VOLTAGE

14.7vOutput volt without Battery12V:14.2V, 24V:29V

COOLING FAN

THERMALLY CONTROLLED (Automatic Working)
Package included:
1 x Solar MPPT Controller
